KDK-EDGE-F30
    发布时间: 2020-12-17 13:07

军民两用侦察无人机

Dual-use Reconnaissance UAV

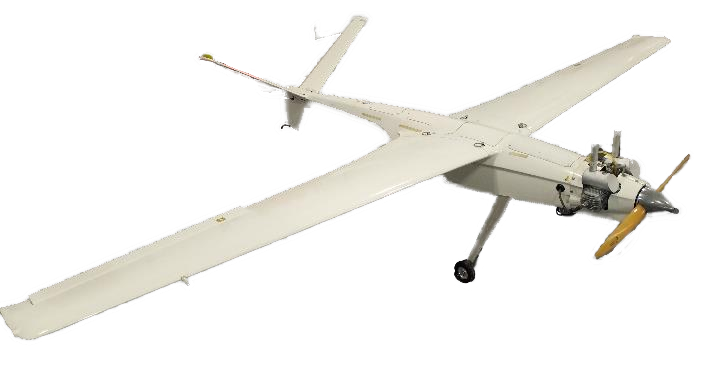

  KDK-EDGE-F30 Dual-use Reconnaissancer UAV  is a professional oil-electric fixed-wing uav with vertical take-off and landing, which can realize one-button autonomous take-off, hover, flight and landing. The maximum load is 12KG, and it has an extra-long endurance of 10 hours. The high-power power system provides guarantee for fast and efficient cruise.

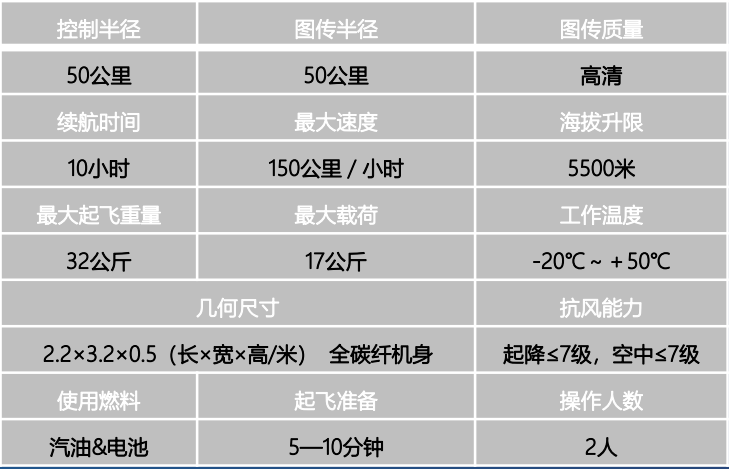

  • Frame Material: Carbon Fibe
  • Frame shape: Fixed-wing helicopter
  • UAV size: 2.2*3.2*0.5m
  • Radius of Image transmission: 50km
  • Figure the quality: HD
  • Radius of remote control: 50km
  • Driving mode:Hybrid
  • Take off and landing mode: vertical takeoff and landing
  • Mission Load: ≤17kg
  • Working altitude: 5500m
  • Duration: 10h
  • Flight speed:  ≤150km/h
  • Working temperature: - 20 ~+55 ℃
  • Wind Resistance Level: Level 7
  • Deployment time: <10 min
  • Operator: 2
  • One-click take-off: Support
